Zbernica i2c: PCF8574

Zo stránky SensorWiki

Záverečný projekt predmetu MIPS / LS2025 - Kamil Hanišák


Zadanie

Cieľom zadania bolo vytvoriť jednoduchý mikroprocesorový obvod, ktorý umožňuje ovládať viacero LED diód pomocou i2c expanzného obvodu PCF8574, a naprogramovať jednoduchú svetelnú animáciu.

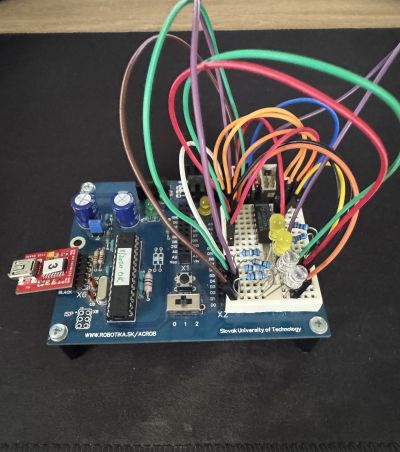

Vývojová doska ACROB.

Literatúra:


Analýza a opis riešenia

Na riešenie zadania sme použili zbernicu i2c PCF8574, ktorá nám umožnila ovládať viacero LED diód pomocou len dvoch vodičov – SDA a SCL. Tento čip komunikuje po i2c zbernici s mikrokontrolérom Arduino Acrob s ATmega328P, pričom každý jej výstupný pin možno samostatne nastavovať na logickú 0 alebo 1.

Použité komponenty:

  • PCF8574P – i2c expander s 8 výstupmi
  • 4x LED dióda
  • 4x rezistor 220 Ω – ochranné rezistory pred LED diódami
  • 2x rezistor 4.7 kΩ – pull-up rezistory na i2c vodiče (SDA a SCL)
  • Prepojovacie vodiče a nepájivé pole (breadboard)
Konfigurácia pinov PCF8574P.

Naše konkrétne pripojenie pinov čipu PCF8574 k Arduinu a LED diódam:

Pin PCF8574 Pripojenie
A0 Adresovací pin – pripojený na GND
A1 Adresovací pin – pripojený na GND
A2 Adresovací pin – pripojený na GND
P0 Výstup pre LED 1
P1 Výstup pre LED 2
P2 Výstup pre LED 3
P3 Výstup pre LED 4
VSS GND
P4–P7 Nepoužité
INT Nepripojené (nepoužili sme prerušenie)
SCL (pin 14) Pripojené na Arduino A5 + pull-up rezistor na VCC
SDA (pin 15) Pripojené na Arduino A4 + pull-up rezistor na VCC
VDD Napájanie +5V


Schéma zapojenia:

Schéma zapojenia.


Algoritmus a program

Základom programu je cyklické zapínanie a vypínanie jednotlivých výstupov čipu PCF8574 tak, aby vytvorili jednoduchú svetelnú animáciu – postupné rozsvietenie, zhasínanie, bežiace svetlo a spoločné blikanie. Pri písaní kódu sme využili knižnice i2cmaster.h a i2cmaster.c z cvičení.

Použité funkcie:

  • i2c_init() - Inicializuje i2c zbernicu. Táto funkcia je súčasťou knižnice i2cmaster.h.
  • pcf_write(uint8_t data) - Pomocná funkcia, ktorá zabezpečuje zápis jedného bajtu do PCF8574.
  • i2c_start(addr)/i2c_write(data)/i2c_stop() - Funkcie z i2cmaster.h pre riadenie zbernice i2c – začatie komunikácie, odoslanie dát, ukončenie prenosu.
  • _delay_ms(x) - Časové oneskorenie na vytvorenie vizuálne vnímateľnej animácie LED.

Priebeh algoritmu:

  • Postupné rozsvietenie LED 1 → LED 4
  • Postupné zhasínanie LED 4 → LED 1
  • Bežiace svetlo tam a späť
  • Tri spoločné záblesky všetkých LED naraz


#include <avr/io.h>
#include <util/delay.h>
#include "i2cmaster.h"
#define PCF8574_ADDR 0x40

void pcf_write(uint8_t data) {
    i2c_start(PCF8574_ADDR + I2C_WRITE);
    i2c_write(data);
    i2c_stop();
}

int main(void) {
    i2c_init();
    uint8_t stav = 0xFF;  // Výstupné bity (všetky LED zhasnuté – log. 1)

    while (1) {
        // 1. Postupné rozsvietenie LED
        for (uint8_t i = 0; i < 4; i++) {
            stav &= ~(1 << i);  // nastav bit i na 0, zapni LED
            pcf_write(stav);
            _delay_ms(200);
        }

        // 2. Postupné zhasínanie LED
        for (int8_t i = 3; i >= 0; i--) {
            stav |= (1 << i);  // nastav bit i na 1, zhasni LED
            pcf_write(stav);
            _delay_ms(200);
        }

        // 3. Bežiace svetlo tam a späť
        for (uint8_t i = 0; i < 4; i++) {
            pcf_write(~(1 << i));  // iba jeden bit je 0
            _delay_ms(150);
        }
        for (int8_t i = 2; i >= 1; i--) {
            pcf_write(~(1 << i));
            _delay_ms(150);
        }

        // 4. Všetky LED bliknú naraz 3x
        for (uint8_t i = 0; i < 3; i++) {
            pcf_write(0b11110000);  //všetky zapnuté
            _delay_ms(150);
            pcf_write(0xFF);        //všetky vypnuté
            _delay_ms(150);
        }

        _delay_ms(500);  // pauza medzi cyklami
    }
}

#ifndef _I2CMASTER_H
#define _I2CMASTER_H
/*************************************************************************
* Title:    C include file for the I2C master interface
*           (i2cmaster.S or twimaster.c)
* Author:   Peter Fleury <pfleury@gmx.ch>
* File:     $Id: i2cmaster.h,v 1.12 2015/09/16 09:27:58 peter Exp $
* Software: AVR-GCC 4.x
* Target:   any AVR device
* Usage:    see Doxygen manual
**************************************************************************/

/**
 @file
 @defgroup pfleury_ic2master I2C Master library
 @code #include <i2cmaster.h> @endcode

 @brief I2C (TWI) Master Software Library

 Basic routines for communicating with I2C slave devices. This single master
 implementation is limited to one bus master on the I2C bus.

 This I2c library is implemented as a compact assembler software implementation of the I2C protocol
 which runs on any AVR (i2cmaster.S) and as a TWI hardware interface for all AVR with built-in TWI hardware (twimaster.c).
 Since the API for these two implementations is exactly the same, an application can be linked either against the
 software I2C implementation or the hardware I2C implementation.

 Use 4.7k pull-up resistor on the SDA and SCL pin.

 Adapt the SCL and SDA port and pin definitions and eventually the delay routine in the module
 i2cmaster.S to your target when using the software I2C implementation !

 Adjust the  CPU clock frequence F_CPU in twimaster.c or in the Makfile when using the TWI hardware implementaion.

 @note
    The module i2cmaster.S is based on the Atmel Application Note AVR300, corrected and adapted
    to GNU assembler and AVR-GCC C call interface.
    Replaced the incorrect quarter period delays found in AVR300 with
    half period delays.

 @author Peter Fleury pfleury@gmx.ch  http://tinyurl.com/peterfleury
 @copyright (C) 2015 Peter Fleury, GNU General Public License Version 3

 @par API Usage Example
  The following code shows typical usage of this library, see example test_i2cmaster.c

 @code

 #include <i2cmaster.h>


 #define Dev24C02  0xA2      // device address of EEPROM 24C02, see datasheet

 int main(void)
 {
     unsigned char ret;

     i2c_init();                             // initialize I2C library

     // write 0x75 to EEPROM address 5 (Byte Write)
     i2c_start_wait(Dev24C02+I2C_WRITE);     // set device address and write mode
     i2c_write(0x05);                        // write address = 5
     i2c_write(0x75);                        // write value 0x75 to EEPROM
     i2c_stop();                             // set stop conditon = release bus


     // read previously written value back from EEPROM address 5
     i2c_start_wait(Dev24C02+I2C_WRITE);     // set device address and write mode

     i2c_write(0x05);                        // write address = 5
     i2c_rep_start(Dev24C02+I2C_READ);       // set device address and read mode

     ret = i2c_readNak();                    // read one byte from EEPROM
     i2c_stop();

     for(;;);
 }
 @endcode

*/


/**@{*/

#if (__GNUC__ * 100 + __GNUC_MINOR__) < 304
#error "This library requires AVR-GCC 3.4 or later, update to newer AVR-GCC compiler !"
#endif

#include <avr/io.h>

/** defines the data direction (reading from I2C device) in i2c_start(),i2c_rep_start() */
#define I2C_READ    1

/** defines the data direction (writing to I2C device) in i2c_start(),i2c_rep_start() */
#define I2C_WRITE   0


/**
 @brief initialize the I2C master interace. Need to be called only once
 @return none
 */
extern void i2c_init(void);


/**
 @brief Terminates the data transfer and releases the I2C bus
 @return none
 */
extern void i2c_stop(void);


/**
 @brief Issues a start condition and sends address and transfer direction

 @param    addr address and transfer direction of I2C device
 @retval   0   device accessible
 @retval   1   failed to access device
 */
extern unsigned char i2c_start(unsigned char addr);


/**
 @brief Issues a repeated start condition and sends address and transfer direction

 @param   addr address and transfer direction of I2C device
 @retval  0 device accessible
 @retval  1 failed to access device
 */
extern unsigned char i2c_rep_start(unsigned char addr);


/**
 @brief Issues a start condition and sends address and transfer direction

 If device is busy, use ack polling to wait until device ready
 @param    addr address and transfer direction of I2C device
 @return   none
 */
extern void i2c_start_wait(unsigned char addr);


/**
 @brief Send one byte to I2C device
 @param    data  byte to be transfered
 @retval   0 write successful
 @retval   1 write failed
 */
extern unsigned char i2c_write(unsigned char data);


/**
 @brief    read one byte from the I2C device, request more data from device
 @return   byte read from I2C device
 */
extern unsigned char i2c_readAck(void);

/**
 @brief    read one byte from the I2C device, read is followed by a stop condition
 @return   byte read from I2C device
 */
extern unsigned char i2c_readNak(void);

/**
 @brief    read one byte from the I2C device

 Implemented as a macro, which calls either @ref i2c_readAck or @ref i2c_readNak

 @param    ack 1 send ack, request more data from device<br>
               0 send nak, read is followed by a stop condition
 @return   byte read from I2C device
 */
extern unsigned char i2c_read(unsigned char ack);
#define i2c_read(ack)  (ack) ? i2c_readAck() : i2c_readNak();



/**@}*/
#endif

/*************************************************************************
* Title:    I2C master library using hardware TWI interface
* Author:   Peter Fleury <pfleury@gmx.ch>  http://jump.to/fleury
* File:     $Id: twimaster.c,v 1.4 2015/01/17 12:16:05 peter Exp $
* Software: AVR-GCC 3.4.3 / avr-libc 1.2.3
* Target:   any AVR device with hardware TWI
* Usage:    API compatible with I2C Software Library i2cmaster.h
**************************************************************************/
#include <inttypes.h>
#include <compat/twi.h>

#include "i2cmaster.h"


/* define CPU frequency in hz here if not defined in Makefile */
#ifndef F_CPU
#define F_CPU 16000000UL
#endif

/* I2C clock in Hz */
#define SCL_CLOCK  100000L


/*************************************************************************
 Initialization of the I2C bus interface. Need to be called only once
*************************************************************************/
void i2c_init(void)
{
  /* initialize TWI clock: 100 kHz clock, TWPS = 0 => prescaler = 1 */

  TWSR = 0;                         /* no prescaler */
  TWBR = ((F_CPU/SCL_CLOCK)-16)/2;  /* must be > 10 for stable operation */

}/* i2c_init */


/*************************************************************************
  Issues a start condition and sends address and transfer direction.
  return 0 = device accessible, 1= failed to access device
*************************************************************************/
unsigned char i2c_start(unsigned char address)
{
    uint8_t   twst;

	// send START condition
	TWCR = (1<<TWINT) | (1<<TWSTA) | (1<<TWEN);

	// wait until transmission completed
	while(!(TWCR & (1<<TWINT)));

	// check value of TWI Status Register. Mask prescaler bits.
	twst = TW_STATUS & 0xF8;
	if ( (twst != TW_START) && (twst != TW_REP_START)) return 1;

	// send device address
	TWDR = address;
	TWCR = (1<<TWINT) | (1<<TWEN);

	// wail until transmission completed and ACK/NACK has been received
	while(!(TWCR & (1<<TWINT)));

	// check value of TWI Status Register. Mask prescaler bits.
	twst = TW_STATUS & 0xF8;
	if ( (twst != TW_MT_SLA_ACK) && (twst != TW_MR_SLA_ACK) ) return 1;

	return 0;

}/* i2c_start */


/*************************************************************************
 Issues a start condition and sends address and transfer direction.
 If device is busy, use ack polling to wait until device is ready

 Input:   address and transfer direction of I2C device
*************************************************************************/
void i2c_start_wait(unsigned char address)
{
    uint8_t   twst;


    while ( 1 )
    {
	    // send START condition
	    TWCR = (1<<TWINT) | (1<<TWSTA) | (1<<TWEN);

    	// wait until transmission completed
    	while(!(TWCR & (1<<TWINT)));

    	// check value of TWI Status Register. Mask prescaler bits.
    	twst = TW_STATUS & 0xF8;
    	if ( (twst != TW_START) && (twst != TW_REP_START)) continue;

    	// send device address
    	TWDR = address;
    	TWCR = (1<<TWINT) | (1<<TWEN);

    	// wail until transmission completed
    	while(!(TWCR & (1<<TWINT)));

    	// check value of TWI Status Register. Mask prescaler bits.
    	twst = TW_STATUS & 0xF8;
    	if ( (twst == TW_MT_SLA_NACK )||(twst ==TW_MR_DATA_NACK) )
    	{
    	    /* device busy, send stop condition to terminate write operation */
	        TWCR = (1<<TWINT) | (1<<TWEN) | (1<<TWSTO);

	        // wait until stop condition is executed and bus released
	        while(TWCR & (1<<TWSTO));

    	    continue;
    	}
    	//if( twst != TW_MT_SLA_ACK) return 1;
    	break;
     }

}/* i2c_start_wait */


/*************************************************************************
 Issues a repeated start condition and sends address and transfer direction

 Input:   address and transfer direction of I2C device

 Return:  0 device accessible
          1 failed to access device
*************************************************************************/
unsigned char i2c_rep_start(unsigned char address)
{
    return i2c_start( address );

}/* i2c_rep_start */


/*************************************************************************
 Terminates the data transfer and releases the I2C bus
*************************************************************************/
void i2c_stop(void)
{
    /* send stop condition */
	TWCR = (1<<TWINT) | (1<<TWEN) | (1<<TWSTO);

	// wait until stop condition is executed and bus released
	while(TWCR & (1<<TWSTO));

}/* i2c_stop */


/*************************************************************************
  Send one byte to I2C device

  Input:    byte to be transfered
  Return:   0 write successful
            1 write failed
*************************************************************************/
unsigned char i2c_write( unsigned char data )
{
    uint8_t   twst;

	// send data to the previously addressed device
	TWDR = data;
	TWCR = (1<<TWINT) | (1<<TWEN);

	// wait until transmission completed
	while(!(TWCR & (1<<TWINT)));

	// check value of TWI Status Register. Mask prescaler bits
	twst = TW_STATUS & 0xF8;
	if( twst != TW_MT_DATA_ACK) return 1;
	return 0;

}/* i2c_write */


/*************************************************************************
 Read one byte from the I2C device, request more data from device

 Return:  byte read from I2C device
*************************************************************************/
unsigned char i2c_readAck(void)
{
	TWCR = (1<<TWINT) | (1<<TWEN) | (1<<TWEA);
	while(!(TWCR & (1<<TWINT)));

    return TWDR;

}/* i2c_readAck */


/*************************************************************************
 Read one byte from the I2C device, read is followed by a stop condition

 Return:  byte read from I2C device
*************************************************************************/
unsigned char i2c_readNak(void)
{
	TWCR = (1<<TWINT) | (1<<TWEN);
	while(!(TWCR & (1<<TWINT)));

    return TWDR;

}/* i2c_readNak */


Zdrojový kód: ProjektKamilHanišák.zip

Overenie

Funkčnosť nášho riešenia sme overili vizuálne, a to pozorovaním LED animácie, ktorá prebiehala podľa očakávaného správania definovaného v napísanom kóde.

Obvod zapojenia.

Video:



Kľúčové slová 'Category', ktoré sú na konci stránky nemeňte.

Zdroj: „https://senzor.robotika.sk/sensorwiki/index.php?title=Zbernica_i2c:_PCF8574&oldid=17775“
